2019

ADDITIONAL VEHICLE FEATURES:

  • Continuously Variable Transmission (CVT)
  • Electrically selectable 2WD/4WD/dual-mode rear differential with diff. lock
  • Speed-sensitive Electric Power Steering (EPS)
  • Halogen and LED headlights
  • Sun top and cast aluminum wheels

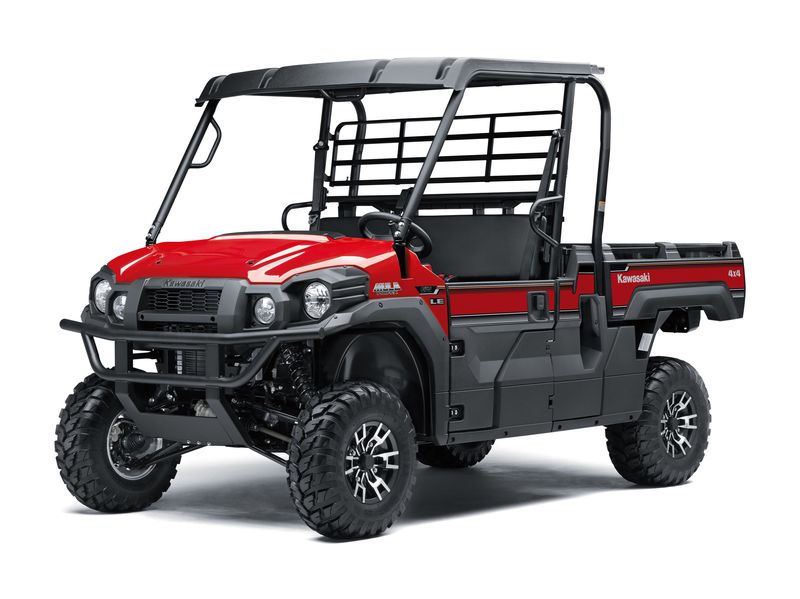

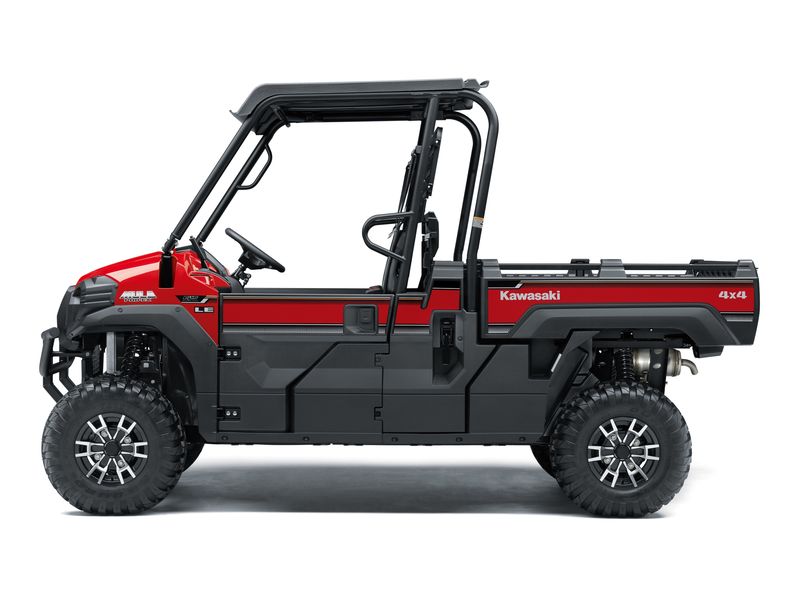

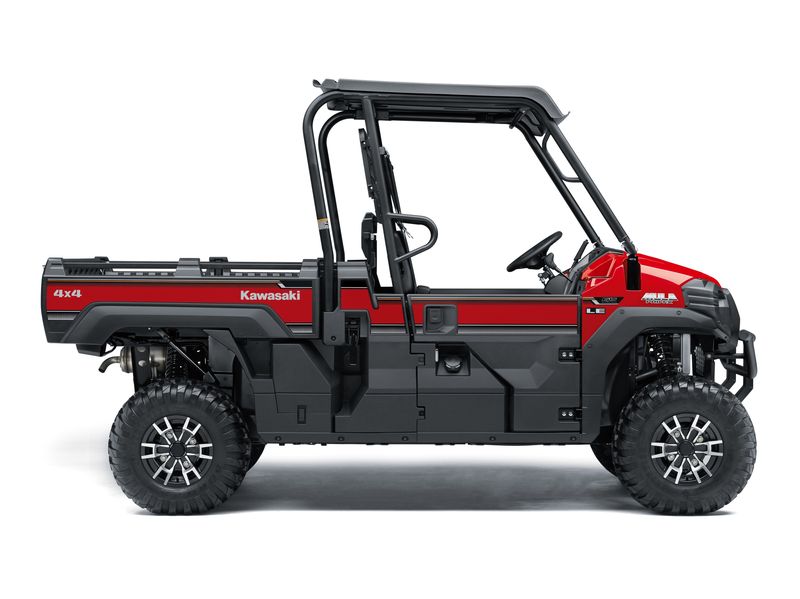

MULE PRO-FX EPS LE
Power
Engine
4-stroke, single cylinder, SOHC, 4-valve liquid-cooled
Displacement
695
Bore x Stroke
2.83x2.62 in
Compression Ratio
9.5:1
Fuel System
DFI® with 44mm throttle body
Transmission
Continuously Variable Transmission (CVT) with centrifugal clutch, (H,L,N,R)
Final Drive
Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Performance
Front Suspension / Wheel Travel
Double wishbone/8.7 in
Rear Suspension / Wheel Travel
Double wishbone/8.5 (L) /8.7 (R) in
Front Tire
26x9.00-12, radial
Rear Tire
26x11.00-12, radial
Front Brakes
Dual Disc, 2 piston caliper
Rear Brakes
Dual Disc, 1 piston caliper
Steering
Electric Power Steering (EPS), Tilt steering
Turning Radius
4267 mm
Details
Overall Length
2794
Overall Width
1524
Overall Height
1925
Ground Clearance
269 mm
Curb Weight
723 kg
Fuel Capacity
43 liters
Wheelbase
2004 mm
Color Choices
Firecracker Red
Seating Capacity
2

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
