2020

ADDITIONAL VEHICLE FEATURES:

  • Selectable 2WD/4WD/dual mode rear differential with diff. lock
  • Electric Power Steering (EPS)
  • Continuously Variable Transmission (CVT) with (H,L,N,R)
  • Steel front bumper and steel cargo bed

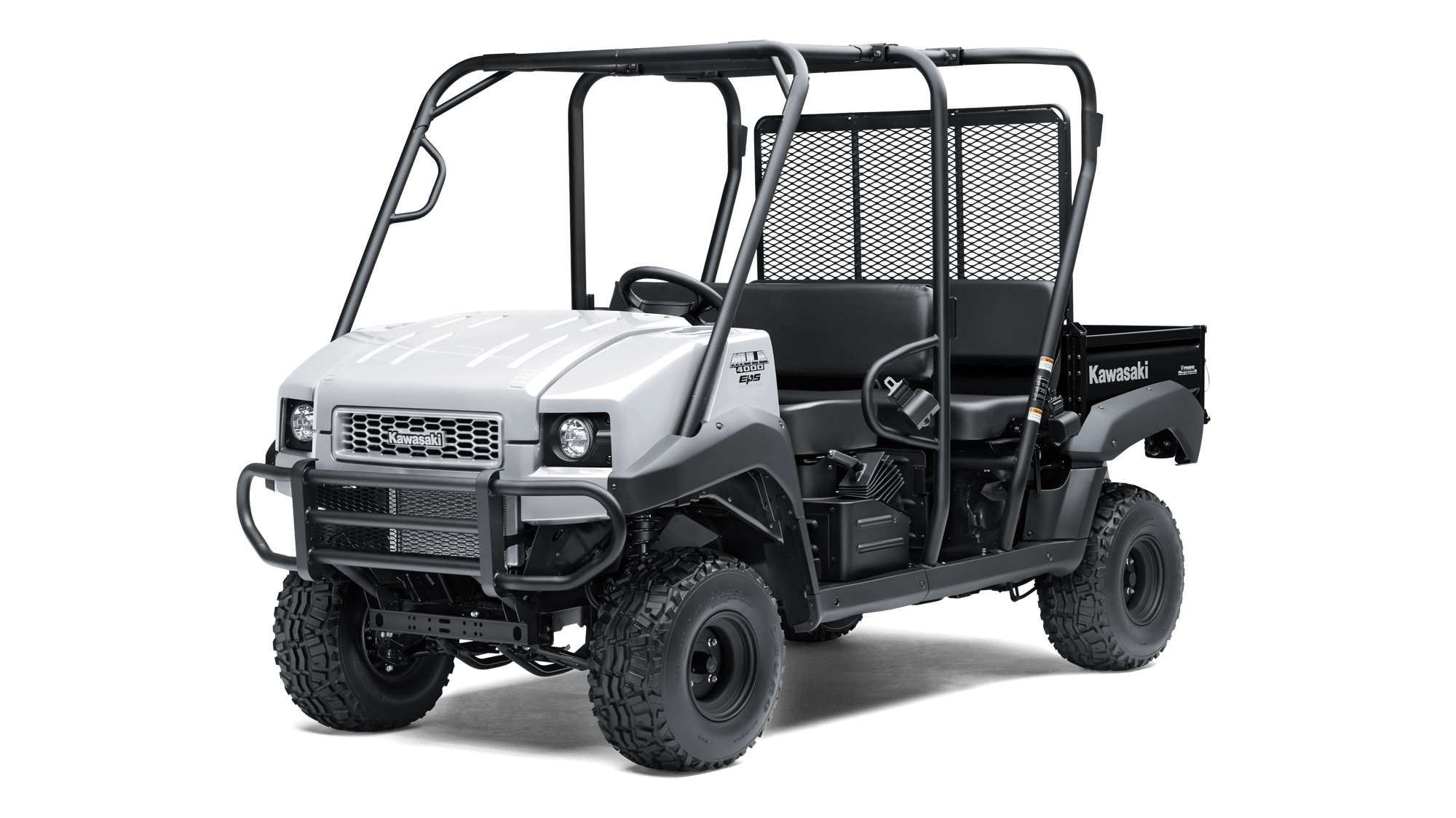

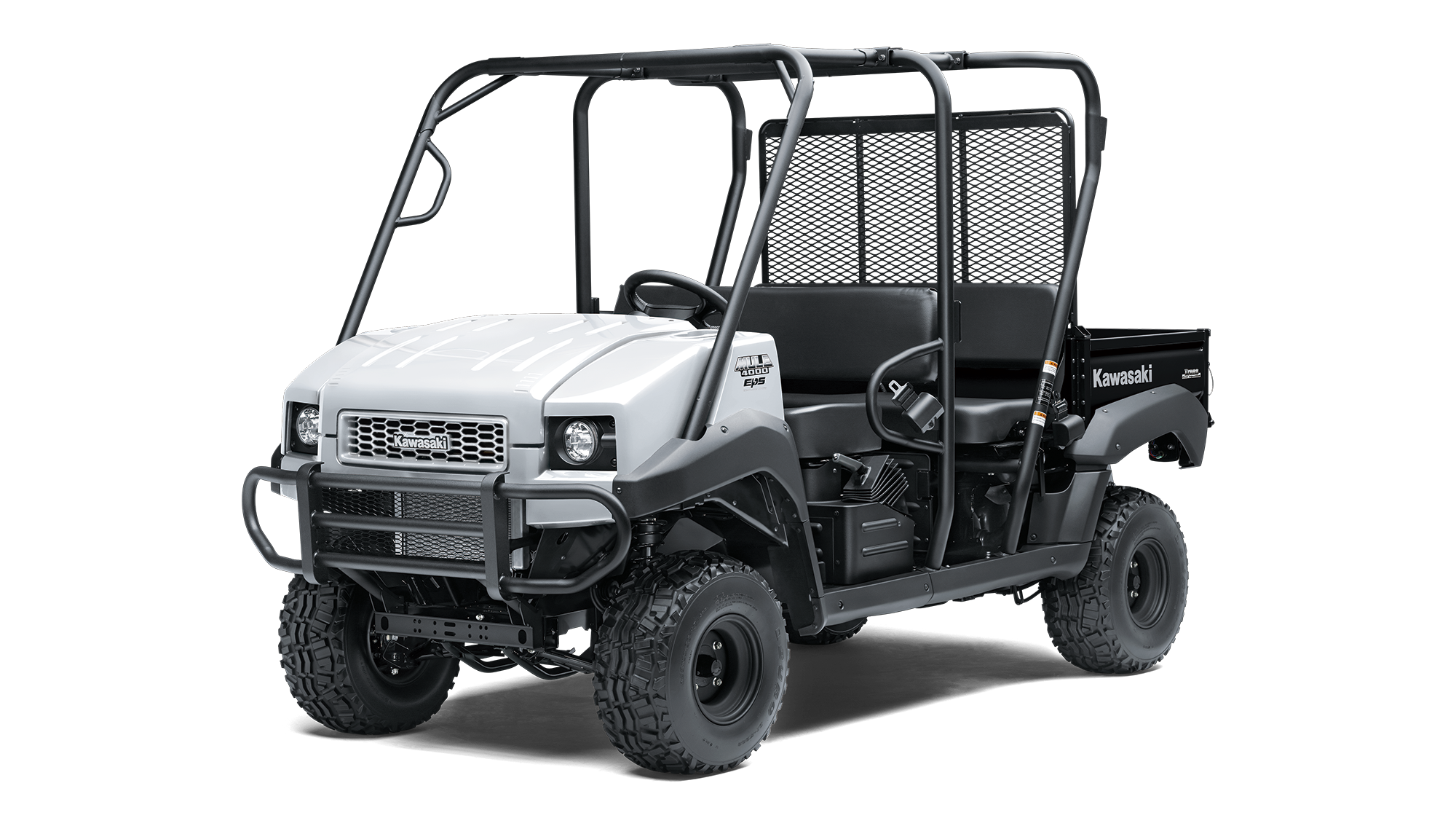

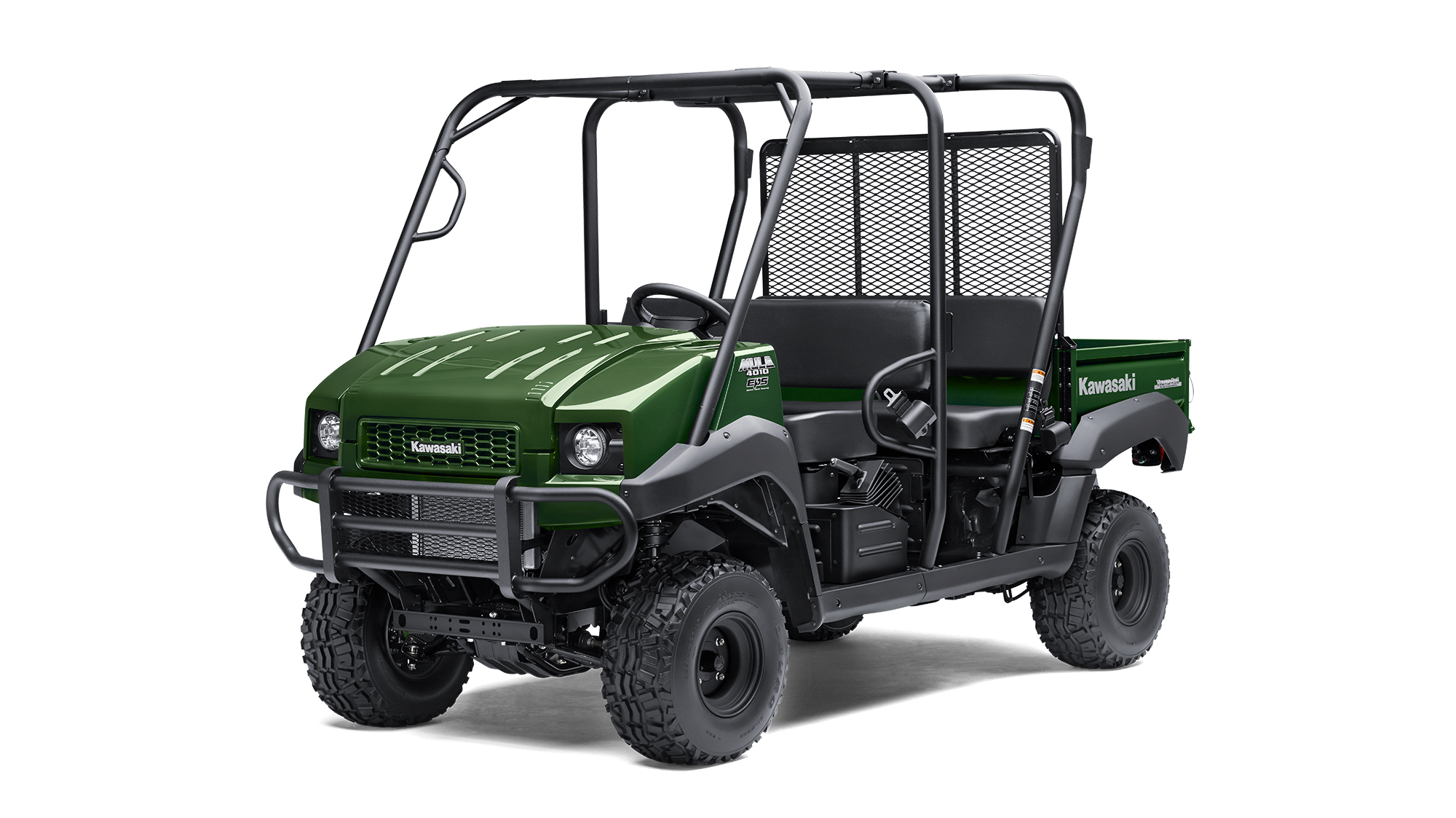

MULE 4010 TRANS4x4
MULE 4010 TRANS4x4
colors

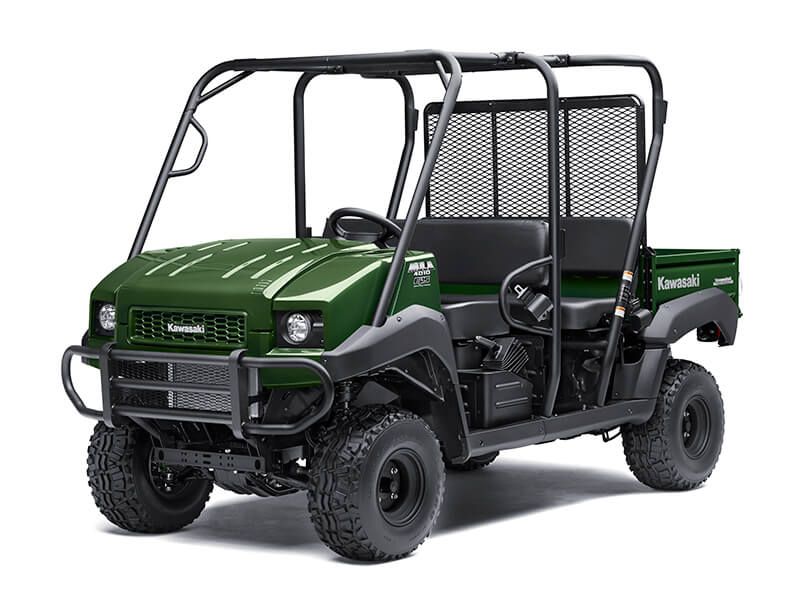

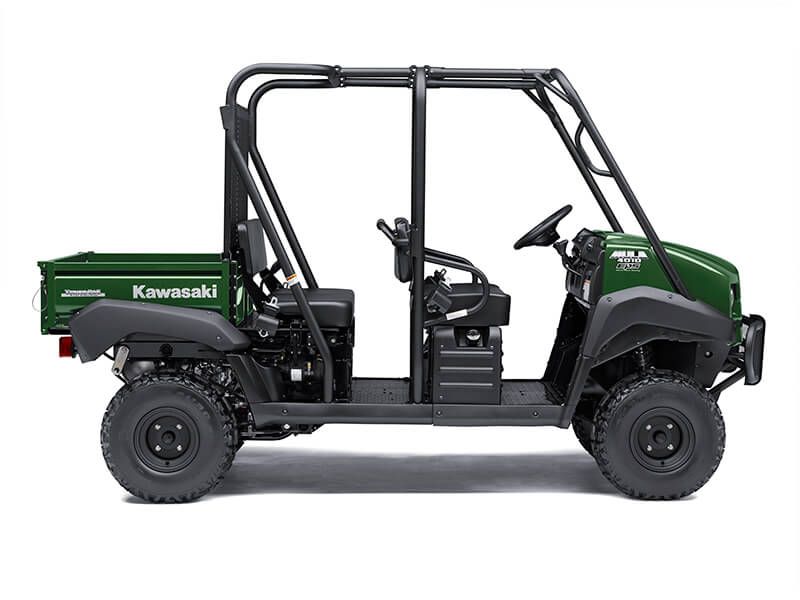

TIMBERLINE GREEN

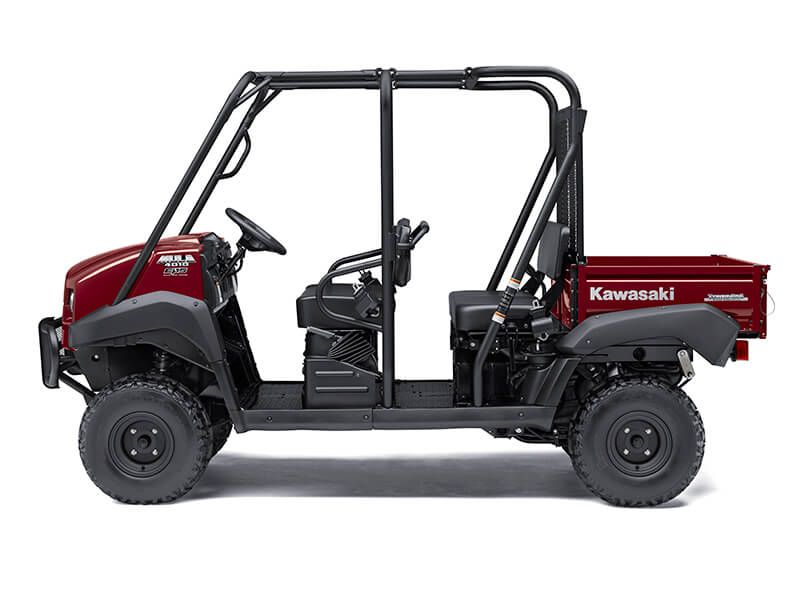

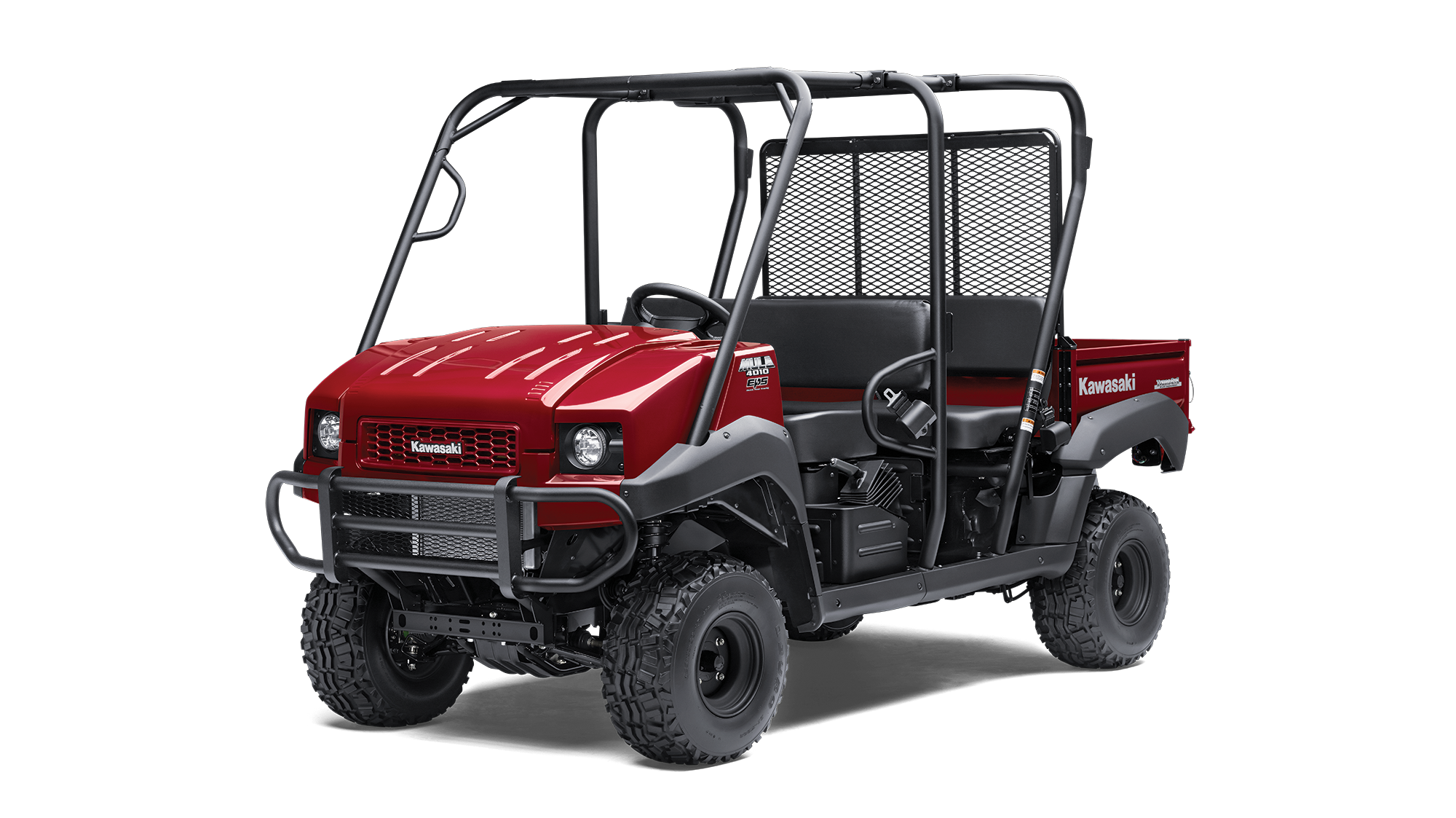

DARK ROYAL RED

Power
Engine
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
Displacement
617
Bore x Stroke
2.99x2.68 in
Compression Ratio
10:3:1
Fuel System
DFI® with 34mm Mikuni throttle body
Transmission
Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive
Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Performance
Front Suspension / Wheel Travel
MacPherson Strut/3.9 in
Rear Suspension / Wheel Travel
DeDion Axle/2.8 in
Front Tire
23x11.00-10
Rear Tire
23x11.00-10
Front Brakes
Drum
Rear Brakes
Drum
Steering
Electric Power Steering (EPS)
Turning Radius
3901 mm
Details
Overall Length
3264
Overall Width
1486
Overall Height
1925
Ground Clearance
180 mm
Curb Weight
720 kg
Fuel Capacity
24 liters
Wheelbase
2164 mm
Color Choices
Timberline Green, Dark Royal Red
Seating Capacity
4

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
