2020

ADDITIONAL VEHICLE FEATURES:

  • Keyed ignition
  • Single shock rear suspension
  • Independent A-arm front suspension

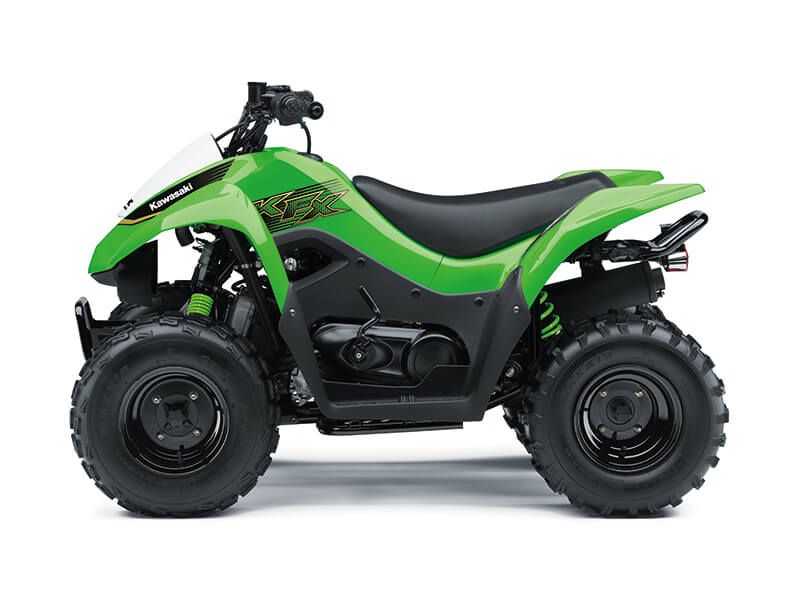

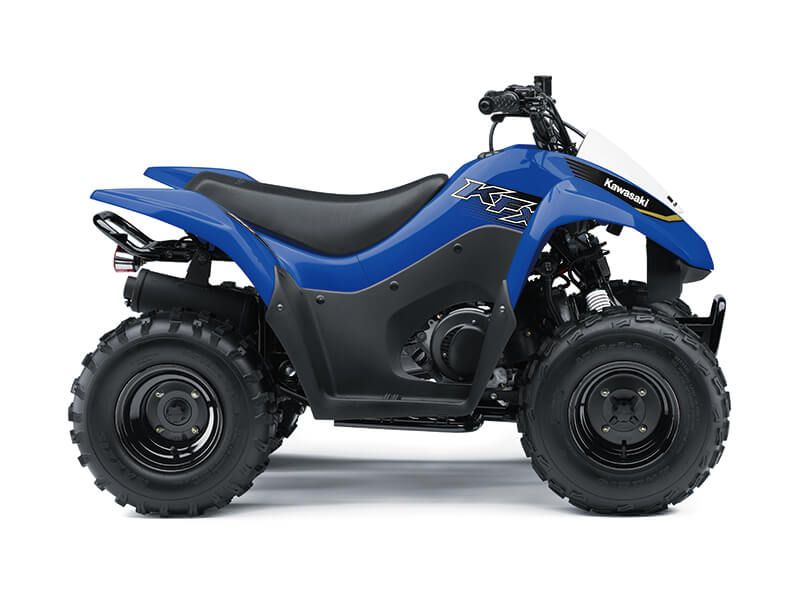

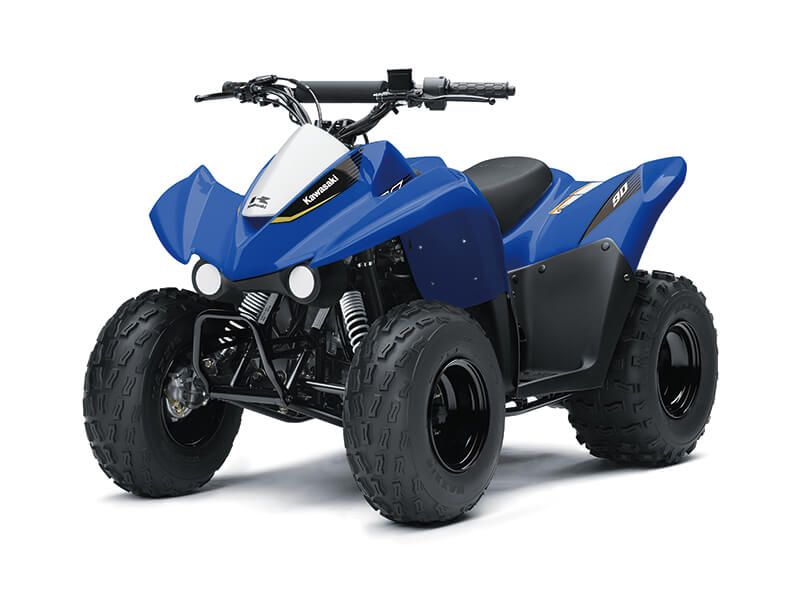

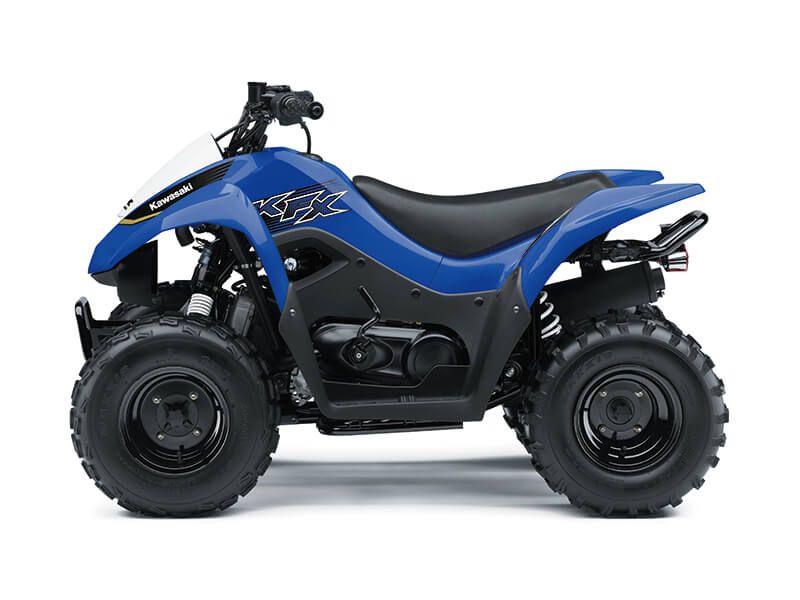

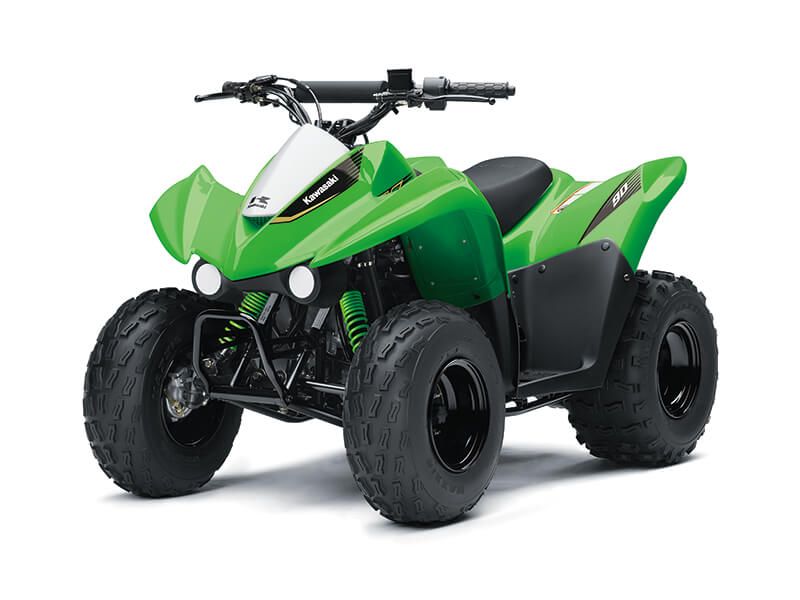

KFX 90
Power
Engine
4-stroke, air-cooled, single
Displacement
89
Bore x Stroke
47.0 x 51.8mm
Compression Ratio
10.0:1
Fuel System
Mikuni PTE 16
Ignition
Solid state CDI
Transmission
Automatic CVT
Final Drive
Automatic CVT
Starting System
Electric with back-up kick-starter
Performance
Front Suspension / Wheel Travel
Single A-arm/2.8 in
Rear Suspension / Wheel Travel
Swingarm/2.9 in
Front Tire
AT 18 x 7-8 tubeless
Rear Tire
AT 18 x 9-8 tubeless
Front Brakes
Dual mechanical drums
Rear Brakes
Hydraulic disc
Turning Radius
2651 mm
Details
Ground Clearance
At rear axle - 3.9 in
Fuel Capacity
4 liters

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
