2020

ADDITIONAL VEHICLE FEATURES:

  • Wide drag bars and forward-mounted footpegs
  • Low center of gravity for easy handling
  • Custom styling with teardrop tank
  • Parallel slash cut pipes
  • Pinstripe wheels

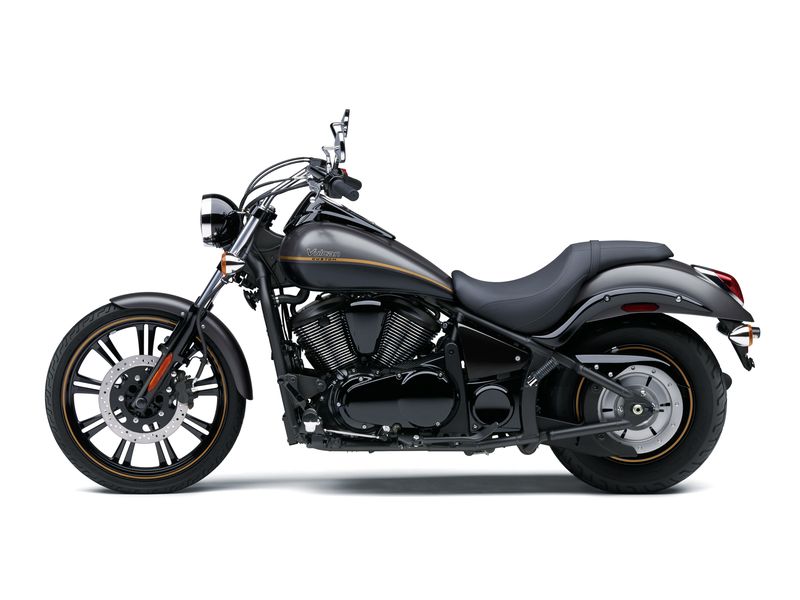

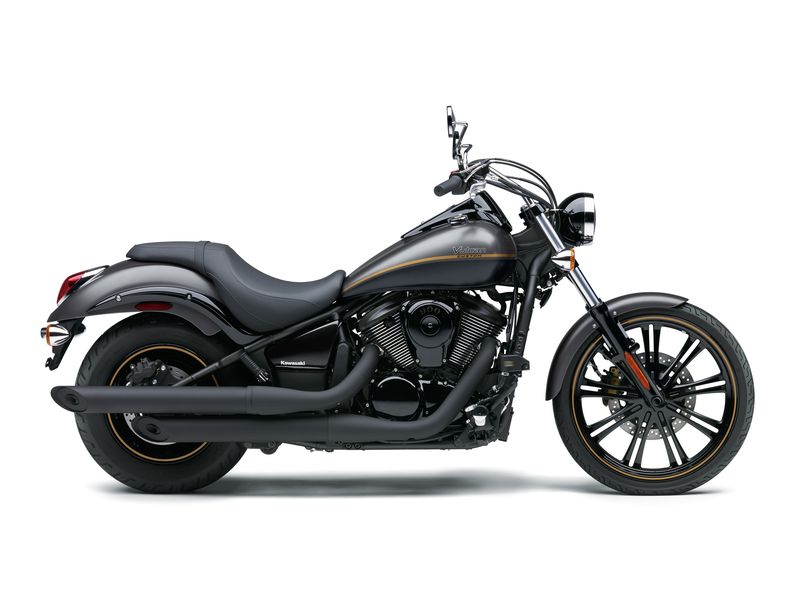

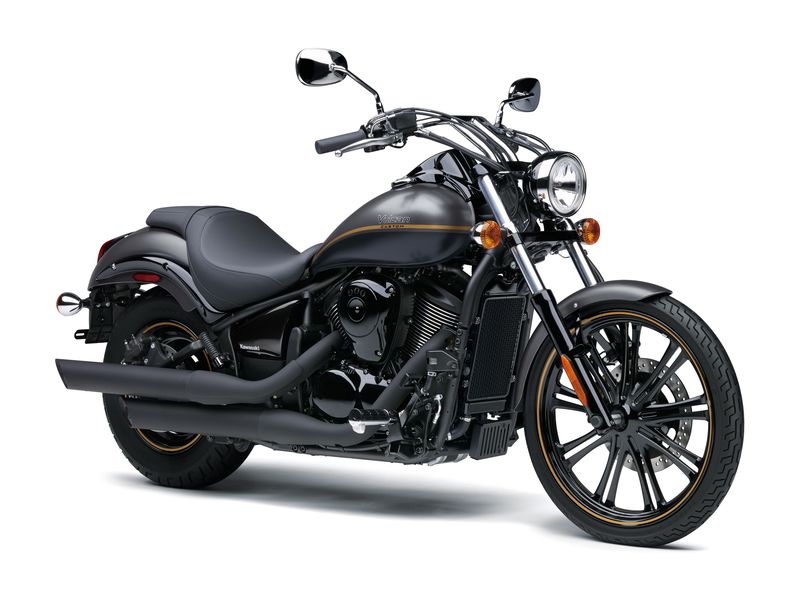

VULCAN 900 CUSTOM
colors

METALLIC GRAPHITE GRAY / METALLIC SPARK BLACK

Power
Engine
4-stroke, 55° V-twin, 4 valves per cylinder, SOHC, liquid-cooled
Displacement
903
Bore x Stroke
88.0 x 74.2mm
Compression Ratio
9.5:1
Fuel System
DFI® 34mm throttle bodies (2), with sub-throttle valves
Ignition
TCBI with digital advance
Transmission
5-speed with positive neutral finder
Final Drive
Kevlar-reinforced belt
Performance
Front Suspension / Wheel Travel
41mm hydraulic telescopic fork/5.9 in
Rear Suspension / Wheel Travel
Uni-Trak® swingarm, 7-way adjustable spring preload/4.1 in
Front Tire
80/90x21
Rear Tire
180/70x15
Front Brakes
Single 300mm hydraulic disc
Rear Brakes
Single 270mm hydraulic disc
Details
Frame Type
Double cradle, high-tensile steel
Rake/Trail
33°/7.2 in
Overall Length
2405
Overall Width
894
Overall Height
1120
Ground Clearance
140 mm
Seat Height
686
Curb Weight
277 kg
Fuel Capacity
20 liters
Wheelbase
1646 mm
Color Choices
Metallic Matte Graphite Gray/Metallic Flat Spark Black

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
