2020

ADDITIONAL VEHICLE FEATURES:

  • Finger-follower valve actuation
  • IMU-enhanced electronics package
  • Showa Balance Free Front Fork and BFRC lite rear shock
  • Exclusive Kawasaki Racing Team colors & graphics

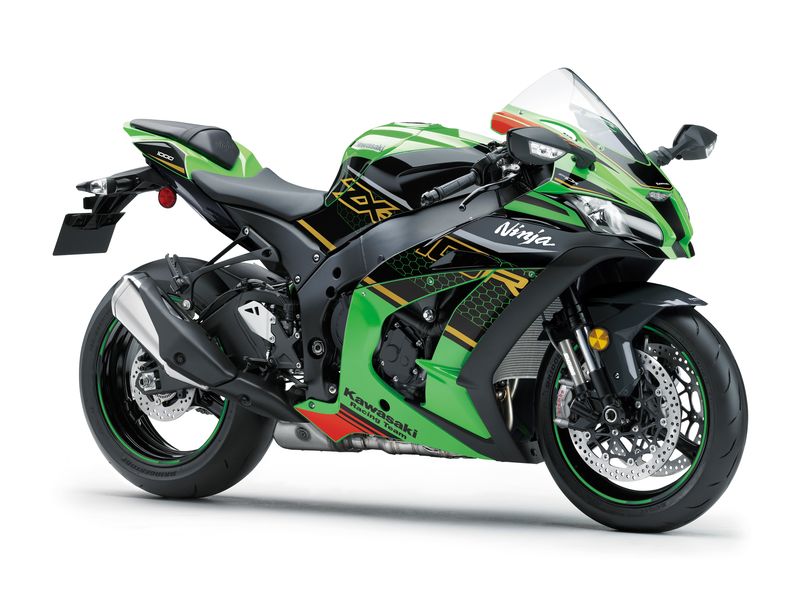

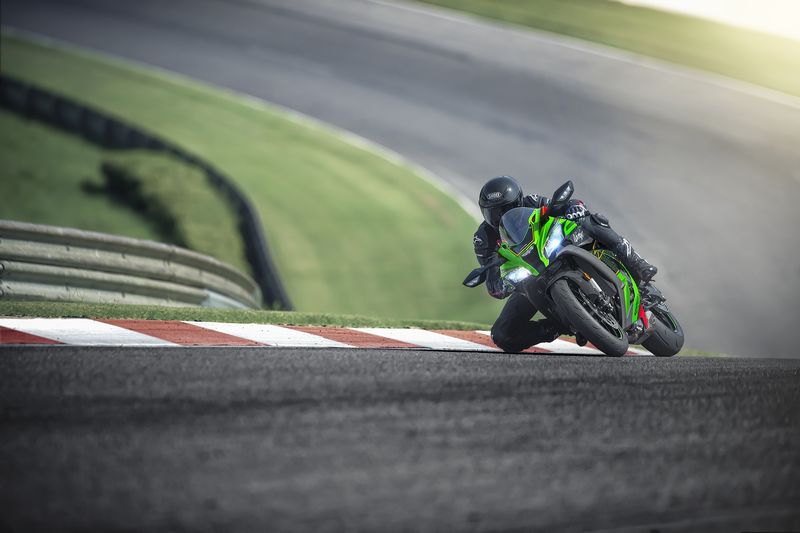

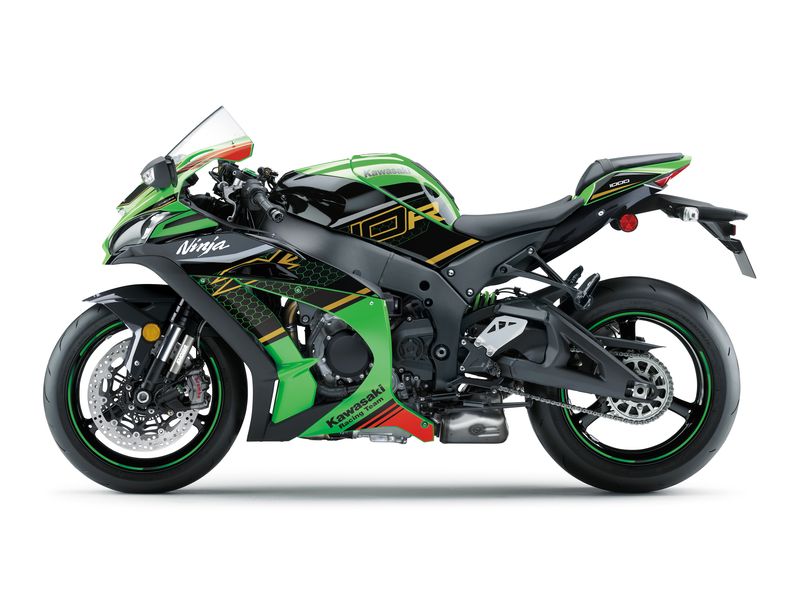

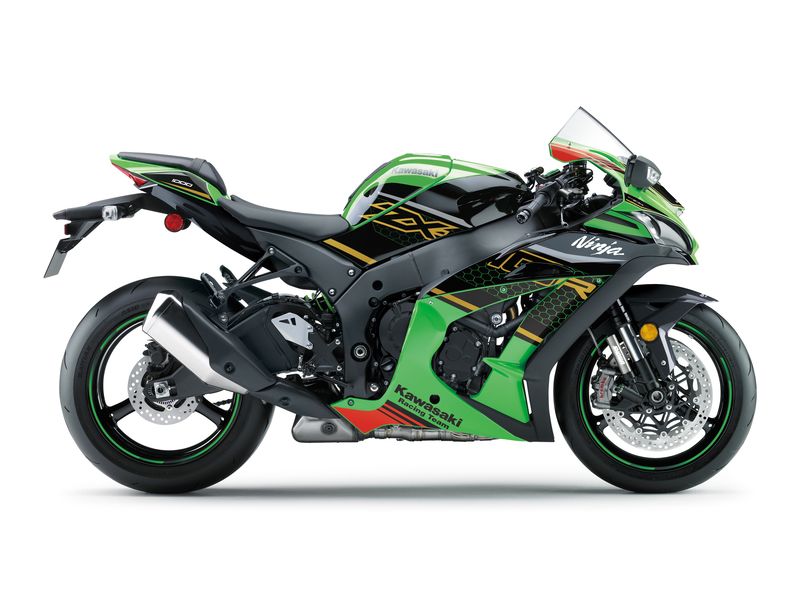

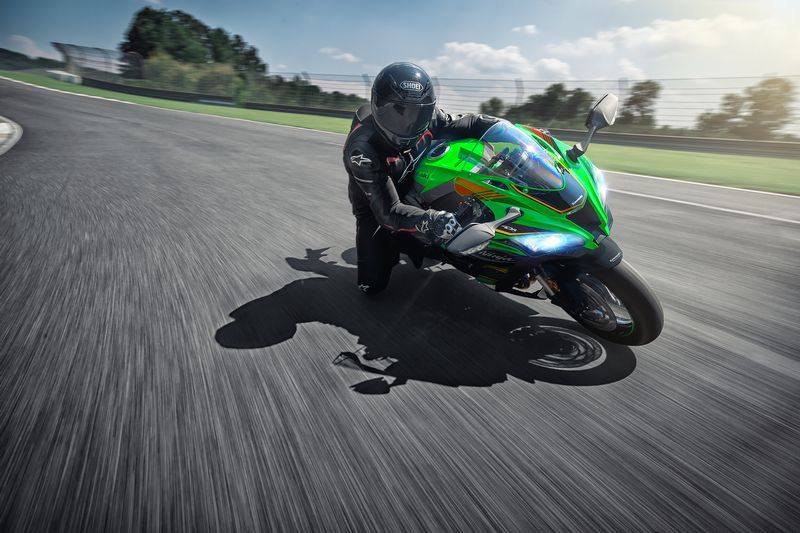

NINJA ZX-10R ABS KRT EDITION
Power
Engine
4-stroke, 4 cylinder, DOHC, 4-valve, Liquid-cooled
Displacement
998
Bore x Stroke
76.0 x 55.0mm
Compression Ratio
13.0:1
Fuel System
DFI® w/47mm Mikuni throttle bodies (4) with oval sub-throttles, two injectors per cylinder
Ignition
TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Transmission
6-speed, return shift
Final Drive
Sealed chain
Performance
Electronic Rider Aids
Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Sport Traction Control (S-KTRC), Kawasaki Engine Braking Control, Kawasaki Quick Shifter (KQS) (upshift only), Kawasaki Corner Management Function (KCMF)
Front Suspension / Wheel Travel
43mm inverted Balance Free Fork, adjustable stepless rebound and compression damping, spring preload adjustability/4.7 in
Rear Suspension / Wheel Travel
Horizontal back-link with Balance Free gas-charged shock, stepless, dual-range (low-/high-speed) compression damping, stepless rebound damping, fully adjustable spring preload/4.5 in
Front Tire
120/70 ZR17
Rear Tire
190/55 ZR17
Front Brakes
Intelligent Braking (KIBS), Brembo dual semi-floating 330mm discs with dual radial mounted monobloc 4-piston calipers
Rear Brakes
KIBS-controlled, single 220mm disc with aluminum single-piston caliper
Details
Frame Type
Aluminum perimeter
Rake/Trail
25.0°/4.2 in
Overall Length
2090
Overall Width
739
Overall Height
1146
Ground Clearance
145 mm
Seat Height
836
Curb Weight
206 kg
Fuel Capacity
17 liters
Wheelbase
1440 mm
Color Choices
Lime Green/Ebony

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
