2020

ADDITIONAL VEHICLE FEATURES:

  • Recreational trail bike with high level of capability
  • Powerful petal disc brakes front and rear

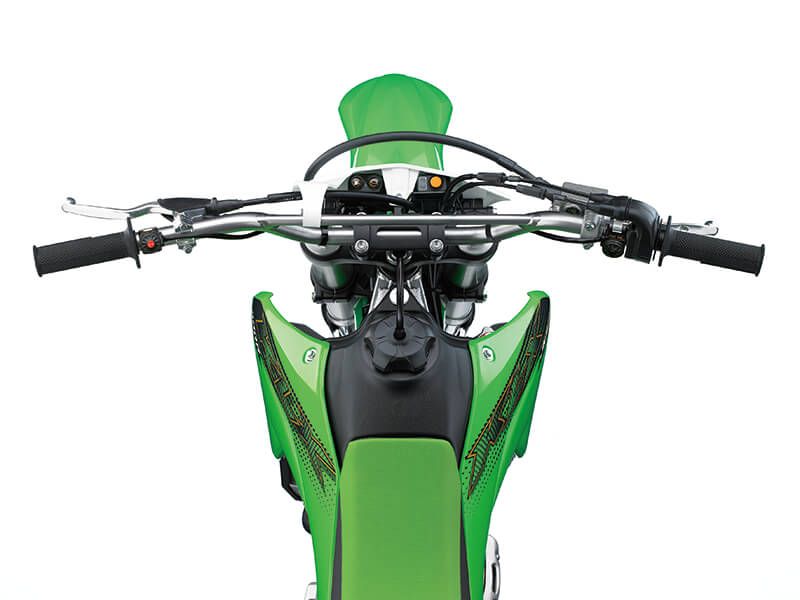

  • ERGO-FIT® adjustability with 4-way handlebar positions
  • Full-size wheels
  • Hassle-free electric start
  • KX™-inspired styling and ergonomics

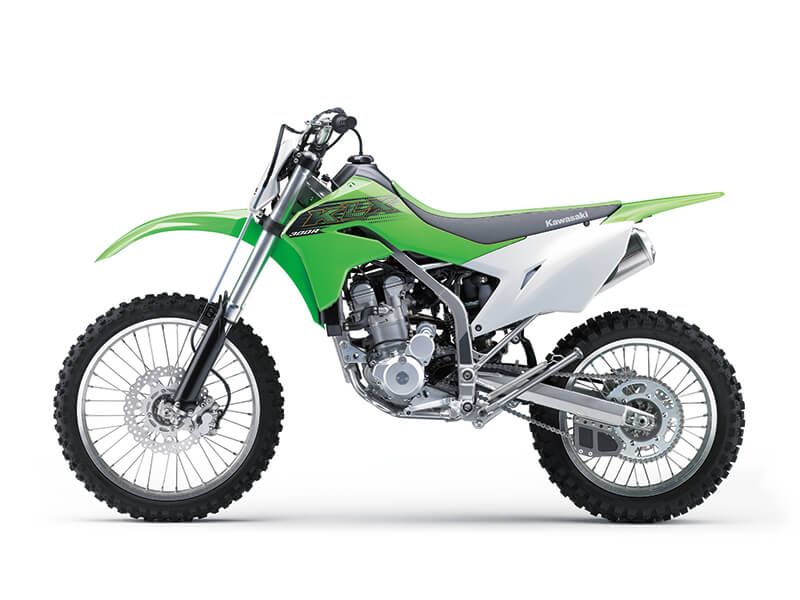

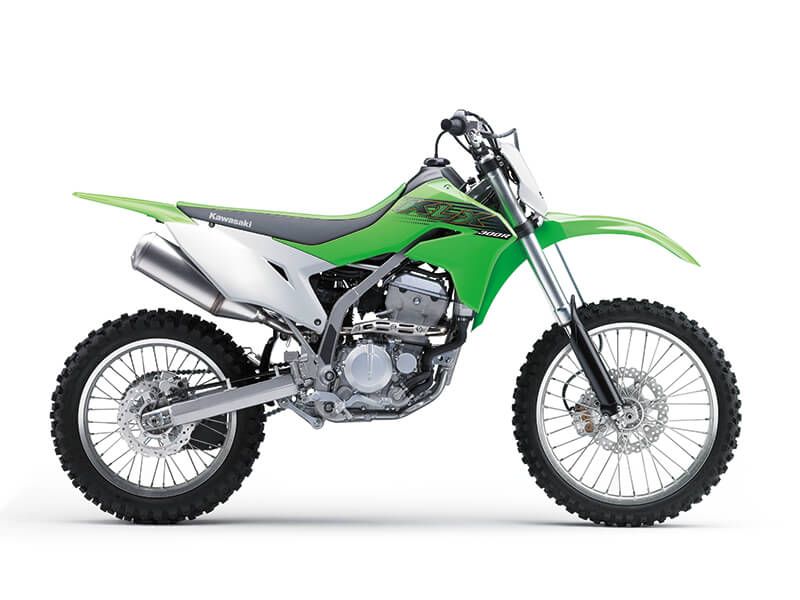

KLX300R
Power

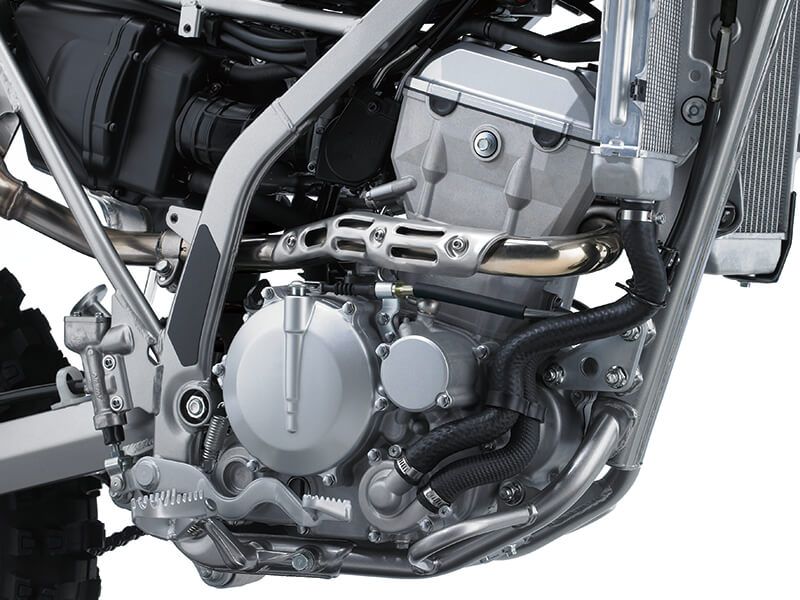

Engine

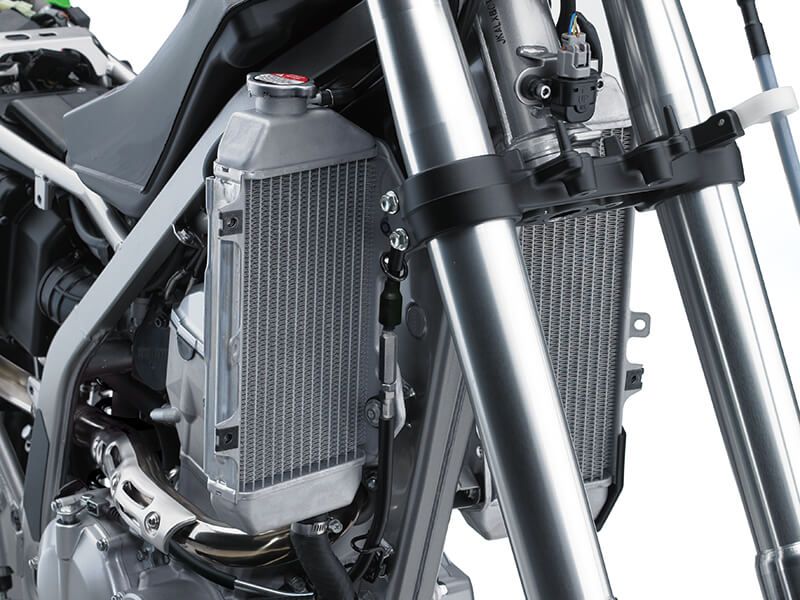

4-stroke single, DOHC, liquid-cooled
Displacement
292
Bore x Stroke
78.0 x 61.2mm
Compression Ratio
11.0:1
Fuel System
DFI® with 34mm Keihin throttle body
Ignition
TCBI
Transmission
6-speed, return shift with wet multi-disc manual clutch
Final Drive
Chain
Performance
Front Suspension / Wheel Travel
43mm inverted telescopic fork with adjustable compression damping /11.2 in
Rear Suspension / Wheel Travel
Uni-Trak® gas charged shock with piggyback reservoir with adjustable compression, rebound damping and spring preload/11.2 in
Front Tire
80/100-21
Rear Tire
100/100-18
Front Brakes
Single 270mm petal disc with a dual-piston caliper

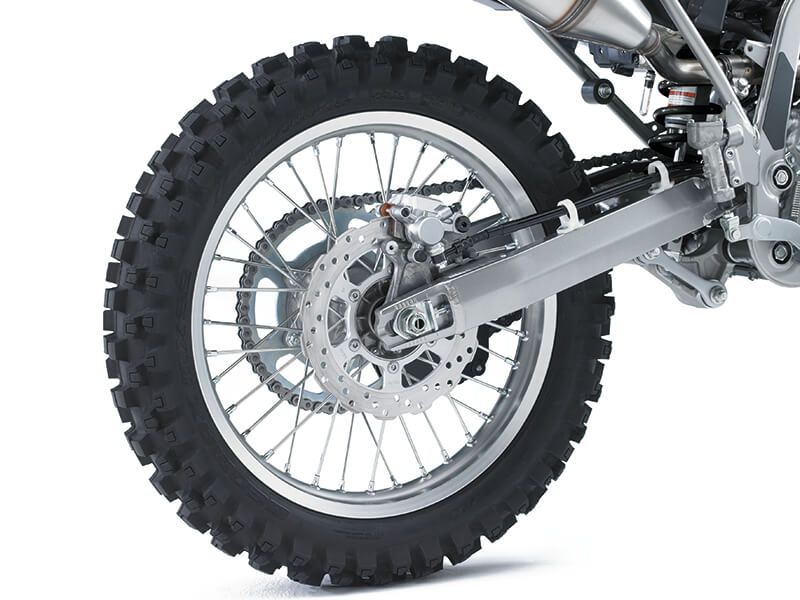

Rear Brakes
Single 240mm petal disc with single-piston caliper
Details
Frame Type
Tubular, Semi-Double Cradle
Rake/Trail
26.9°/4.3 in
Seat Height
925
Fuel Capacity
8 liters
Wheelbase
1250 mm
Color Choices
Lime Green

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
