2020

ADDITIONAL VEHICLE FEATURES:

  • Responsive power
  • Compact perimeter frame
  • Full-size wheels
  • Hassle-free electric start
  • KX™-inspired styling and ergonomics
  • Available with Kawasaki’s first dual-purpose ABS

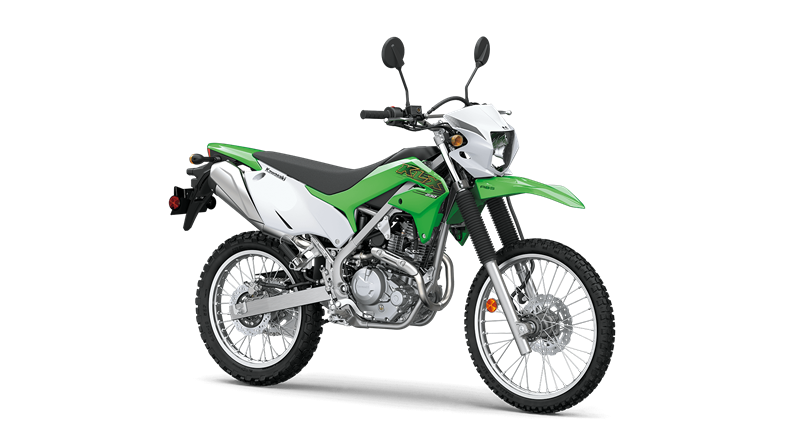

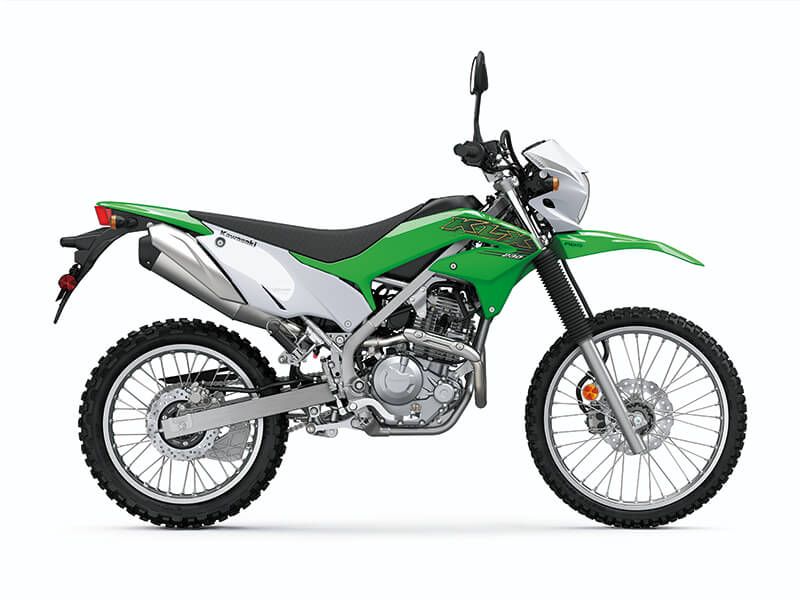

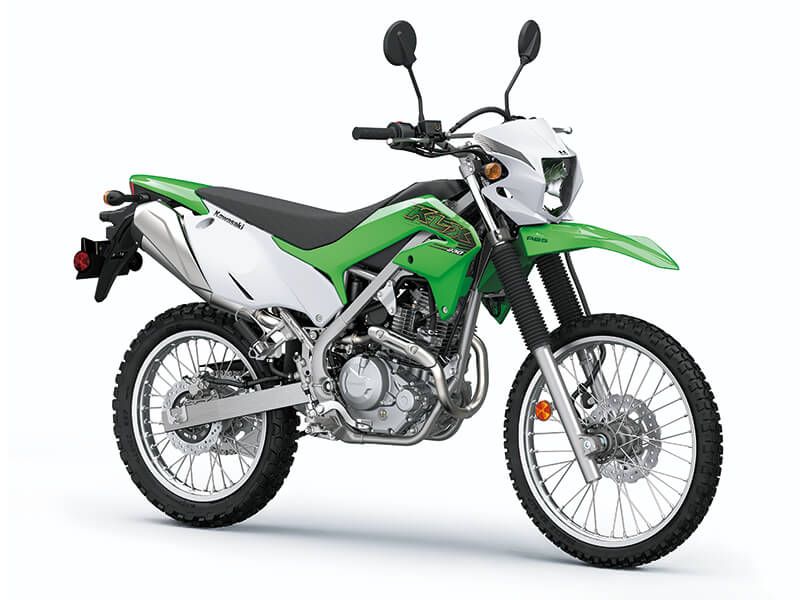

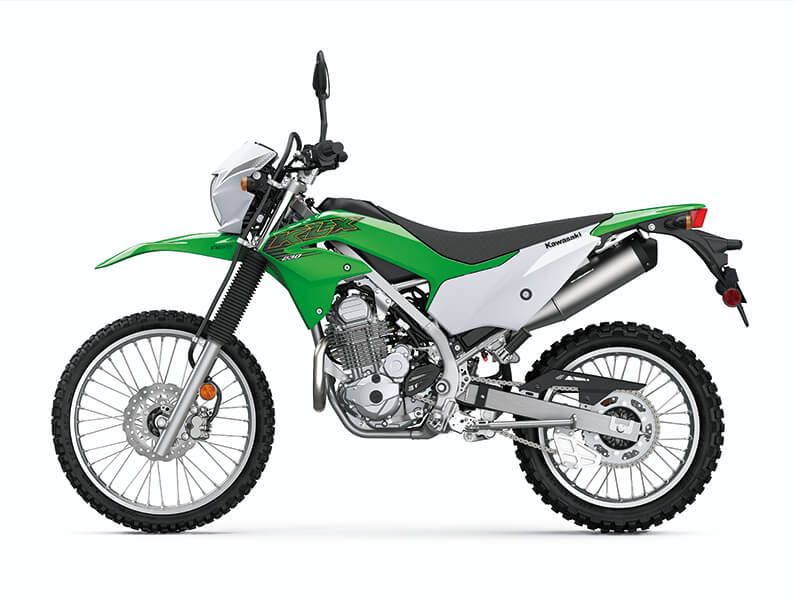

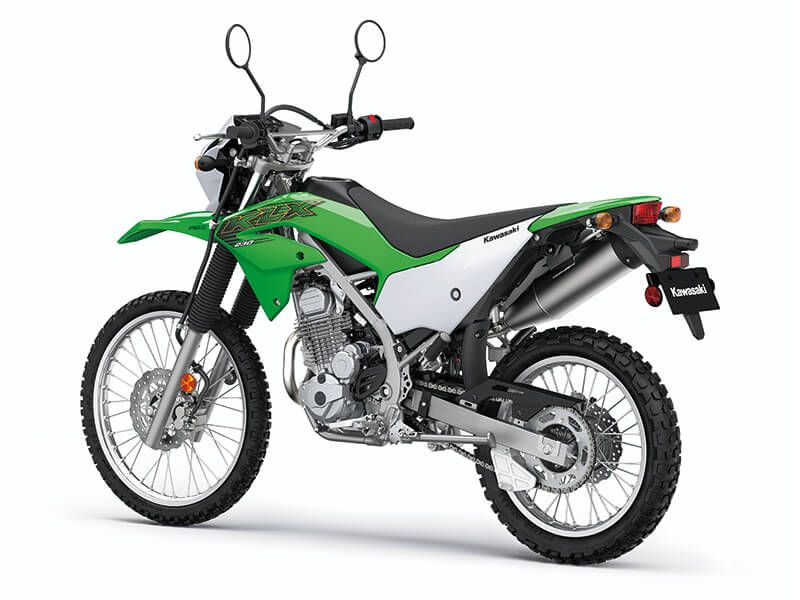

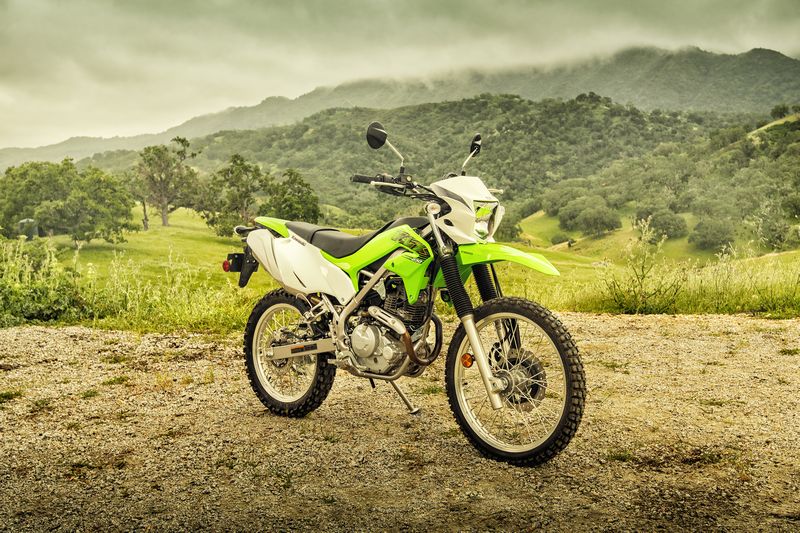

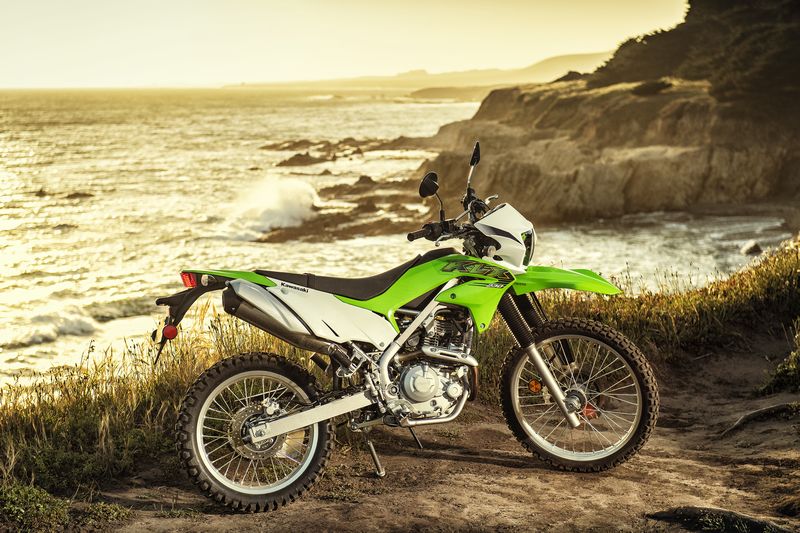

KLX230 ABS
Power
Engine
4-stroke single, SOHC, air-cooled
Displacement
233
Bore x Stroke
67.0 x 66.0mm
Compression Ratio
9.4:1
Fuel System
DFI® with 32mm Keihin throttle body
Ignition
TCBI Electronic Advance
Transmission
6-speed, return shift with wet multi-disc manual clutch
Final Drive
Chain
Performance
Front Suspension / Wheel Travel
37mm telescopic fork/8.7 in
Rear Suspension / Wheel Travel
Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in
Front Tire
2.75 x 21
Rear Tire
4.10 x 18
Front Brakes
Single 265mm petal disc with a dual-piston caliper
Rear Brakes
Single 220mm petal disc with single-piston caliper
Details
Frame Type
High-tensile steel perimeter
Rake/Trail
27.5°/4.6 in
Seat Height
884
Fuel Capacity
8 liters
Wheelbase
1379 mm

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.

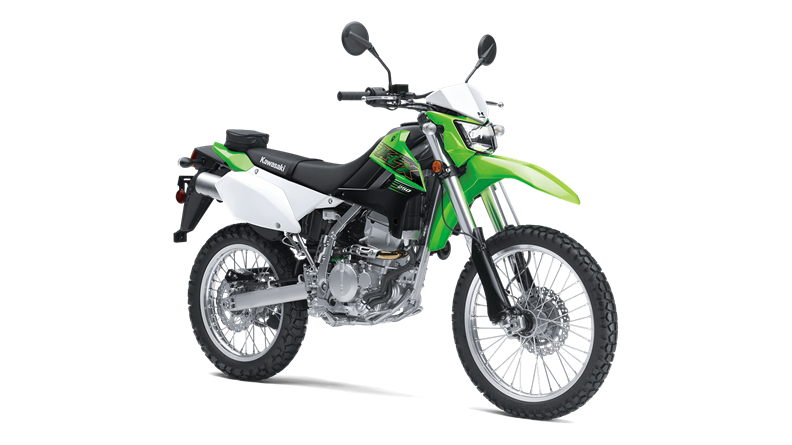

view comparable models
