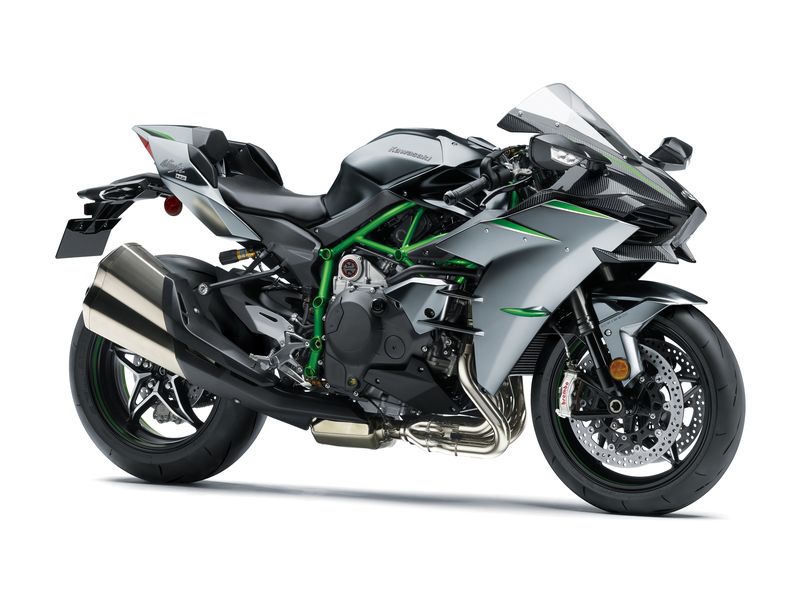

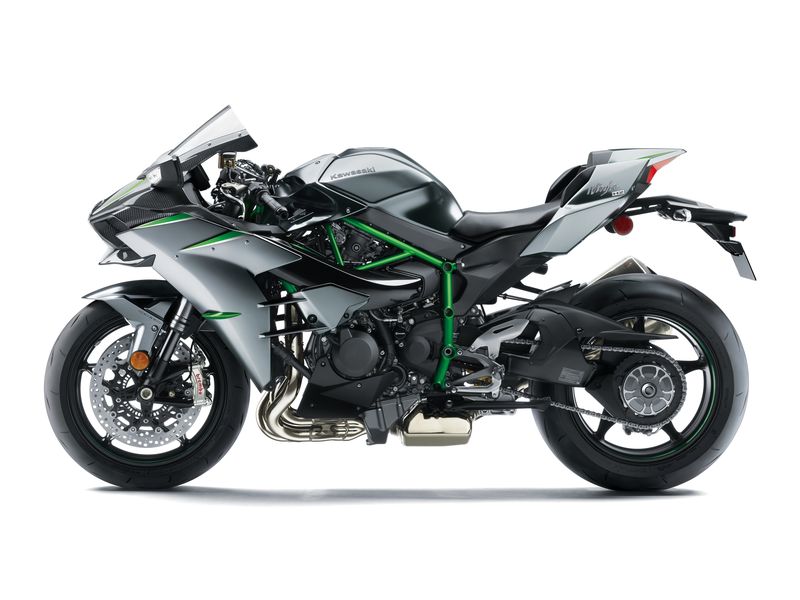

NINJA H2 CARBON
colors

MIRROR COATED MATTE SPARK BLACK / CANDY FLAT BLAZED GREEN

Power
Engine
4-stroke, 4-cylinder, DOHC, 4-valve, liquid-cooled, supercharged
Displacement
998
Bore x Stroke
76.0 x 55.0mm
Compression Ratio
N/A
Fuel System
DFI® (4) with dual injection
Ignition
Digital
Transmission
6-speed, return, dog-ring
Final Drive
Sealed chain
Performance
Front Suspension / Wheel Travel
43mm inverted fork with adjustable rebound and compression damping, spring preload adjustability and top-out springs/119 mm
Rear Suspension / Wheel Travel
Uni-Trak®, Öhlins TTX36 gas charged shock with piggyback reservoir, 22-way compression and rebound damping and adjustability, and hand-turn spring preload adjustability and top-out spring/5.3 in
Front Tire
120/70 ZR17
Rear Tire
200/55 ZR17
Front Brakes
Dual radial-mount, opposed 4-piston Brembo Stylema® calipers, dual semi-floating 330mm discs, KIBS ABS
Rear Brakes
Opposed 2-piston calipers, single 250mm disc, KIBS ABS
Details
Rake/Trail
24.5°/104 mm
Seat Height
826
Curb Weight
238 kg
Fuel Capacity
20 liters
Wheelbase
1455 mm
Color Choices
Mirror Coated Matte Spark Black/Candy Flat Blazed Green

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
